Top Plate Mounting

Since Top Plate Mounting is most conventional and straight forward of the mounting types, it's normally the easiest to retrofit to current applications. It's mounting plate height, width, & length can be easily changed, as can the mounting bolt pattern; with relatively short lead time.

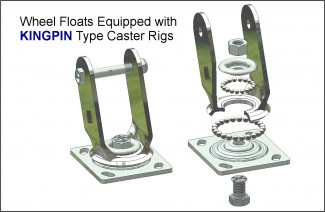

Wheel Floats Equipped with Kingpin Type Caster Rigs

Wheel Floats Equipped with Kingpin Type Caster Rigs

Compared to Kingpinless type caster rigs, Kingpin type caster rigs have lower swivel resistance, but are less robust and pose a FOD (Foreign Object Debris) hazard in the event of failure.

See, "Choosing The Right Wheels & Rigs", under Presentations in the Knowledge Center of this website.

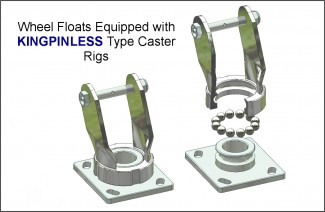

Wheel Floats Equipped with Kingpinless Type Caster Rigs

Wheel Floats Equipped with Kingpinless Type Caster Rigs

Compared to Kingpin type caster rigs, Kingpinless type caster rigs have greater strength redundancy and are compliant to FOD restricted environments, but have greater swivel resistance.

As above, see, “Choosing The Right Wheels & Rigs”, under Presentations in the Knowledge Center of this website.

Since Top Plate Mounting is most conventional and straight forward of the mounting types, it's normally the easiest to retrofit to current applications. It's mounting plate height, width, & length can be easily changed, as can the mounting bolt pattern; with relatively short lead time.
